II Calculation Type-Liquid Release, Round Opening (Ammonia)

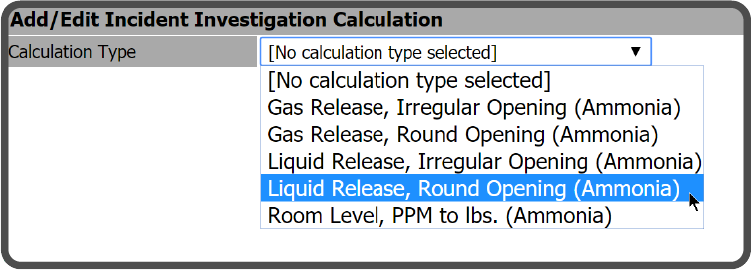

One Calculation Type you can select is Liquid Release, Round Opening (Ammonia).

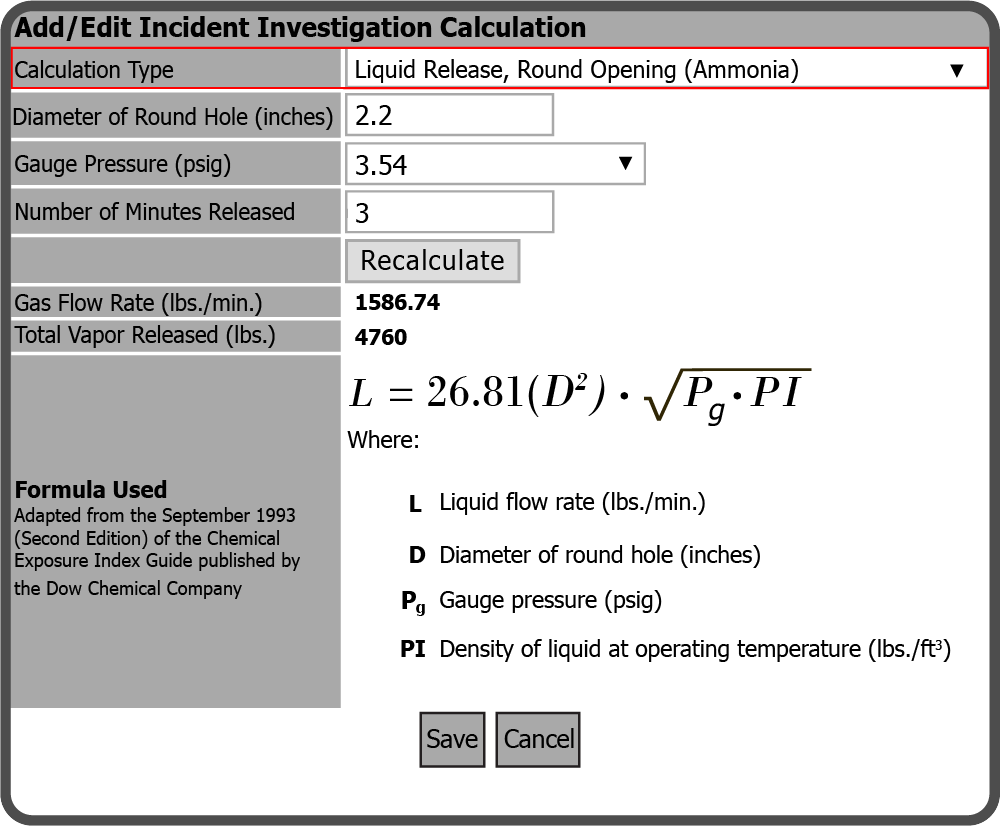

After selecting this Calculation Type, enter information for the Diameter of Round Hole, Gauge Pressure — which will give you the Liquid Flow Rate value — then enter the Number of Minutes Released and Recalculate Button to give you the Total Liquid Released value. Then select the Save Button .

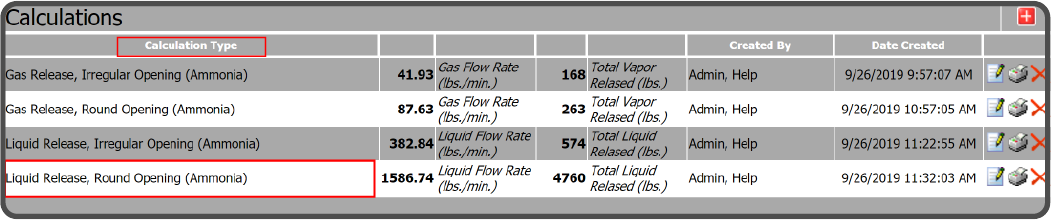

The Calculations grid will list the added Calculation. The first column shows the Calculation Type.

Liquid Release, Round Opening (Ammonia) Fields Breakdown
field	description
Calculation Type	The Calculation Type selected: Liquid Release, Round Opening (Ammonia)
Diameter of Round Hole (inches)	The diameter (in inches) of the round hole
Gauge Pressure (psig)	Enter the gauge pressure
Number of Minutes Released	Enter how long (in minutes) the leak has been going
Recalculate	Select this after you have entered the information above. Then select the Save Button .
Liquid Flow Rate (lbs./min.)	Calculated from the Diameter of Round Hole and Gauge Pressure
Total Liquid Released (lbs.)	Calculation of the total liquid released (.lbs)
Formula Used	Lists the formula used to calculate the Total Liquid Released
